Thread: intersecting components

  1. #1
    Join Date
    Jan 2004
    Location
    Creative Solids, Fairfield Glade Tennessee
    Posts
    125

    Default intersecting components

    ok - thoroughly enjoying 9.5!! and my first indexer project is a nice challenge. need help with intersecting components - where the spiral begins and ends. i used a profile to make that entire piece then added the spiral in the center. my thought is that there should be 5 profiles - the two ends, the two doughnuts (if you will) and a center pole on which i put the spirals. appreciate your thoughts and suggestions
    Don

    Attached Images Attached Images

  2. #2
    Join Date
    Mar 2013
    Location
    Memphis TN
    Posts
    1,014

    Default

    For my first indexer project, I made a cylinder...
    ShopBot Details:
    2013 PRS 96x60x12 (Centroid upgrade)
    4hp Spindle
    12" indexer
    Aspire
    Rhino
    Fusion 360
    Ferrari 360
    Prusa MK3S+
    Prusa XL multi-tool

  3. #3
    Join Date
    Jan 2004
    Location
    Creative Solids, Fairfield Glade Tennessee
    Posts
    125

    Default

    Actually my first were rolling pins, made from solid surface. But those were manual cuts, this will be the first using Aspire

  4. #4
    Join Date
    Mar 2013
    Location
    Memphis TN
    Posts
    1,014

    Default

    I suggest experimenting on 4x4's from your local big box store. Great material for playing with an indexer.
    ShopBot Details:
    2013 PRS 96x60x12 (Centroid upgrade)
    4hp Spindle
    12" indexer
    Aspire
    Rhino
    Fusion 360
    Ferrari 360
    Prusa MK3S+
    Prusa XL multi-tool

  5. #5
    Join Date
    Jan 2004
    Location
    Creative Solids, Fairfield Glade Tennessee
    Posts
    125

    Default

    Got one from hd - it is the next step after some final tweaking - the 4x4 was your idea and a good one. Later today or tomorrow we shall see just what happens.

  6. #6
    Join Date
    Jan 2004
    Location
    Creative Solids, Fairfield Glade Tennessee
    Posts
    125

    Default

    Just an up date - ran out of time to do a test run - needs to wait until i get back from trip - but i solved the problem of how to intersect components - no pictures now, but making progress learning aspire 3d and indexer software - btw training videos suppied by Vectric are exellent and very helpful

  7. #7
    Join Date
    Mar 2005
    Location
    San Jose, CA, USA
    Posts
    685

    Default

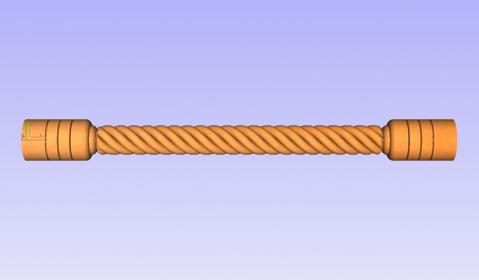

    If you are interested, it is possible to do this design using 2D toolpaths and a larger diameter form tool (point roundover). That way it could be machined in about 30-40 minutes.
    Attached Images Attached Images
    Attached Files Attached Files
    - Randall Newcomb
    10 fingers in, 10 fingers out
    another good day in the shop

  8. #8
    Join Date
    Mar 2013
    Location
    Memphis TN
    Posts
    1,014

    Default

    Quote Originally Posted by rcnewcomb View Post
    If you are interested, it is possible to do this design using 2D toolpaths and a larger diameter form tool (point roundover). That way it could be machined in about 30-40 minutes.
    I totally agree there. Besides being quicker, the results will likely be better too.
    ShopBot Details:
    2013 PRS 96x60x12 (Centroid upgrade)
    4hp Spindle
    12" indexer
    Aspire
    Rhino
    Fusion 360
    Ferrari 360
    Prusa MK3S+
    Prusa XL multi-tool

  9. #9
    Join Date
    Jan 2004
    Location
    Creative Solids, Fairfield Glade Tennessee
    Posts
    125

    Default

    Came up with the same idea and ordered such a router bit - my current ‘challenge’ is that i am now in southern florida visiting my wife’s sister and family..... so when i return i plan to try the point round over - cheers
    don

  10. #10
    Join Date
    Mar 2005
    Location
    San Jose, CA, USA
    Posts
    685

    Default

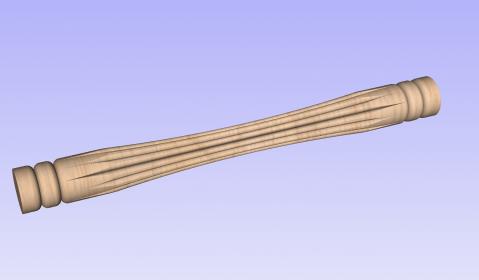

    I think you will be pleased with the point roundover. A large ballnose also works well with the indexer.

    Using vectors that are close together will "overlap" when cut deep enough and generate what looks like a 3D design.
    RotaryFlute.zip
    Attached Images Attached Images
    - Randall Newcomb
    10 fingers in, 10 fingers out
    another good day in the shop
