Can I use this?

Hi Everyone,

We have been using eCabinet Systems more lately for cabinet design. They want you to buy a Thermwood router to run off the software. But we're picking up a used Shopbot....

Anyway, eCabs allows us great flexibility in designing cabinets/projects and then will filter and next all the parts, optimizing panels.

Thermwood doesn't have the software set up to export in dxf. I think their routers take iso standard g-code. It does allow me to print the nested sheets or produce a jpg directly from the screen of each nested sheet. I don't know how to attach a picture here. I can email it to you if you wish.

Question - Is there a way to use this to create a shopbot file? I'd really appreciate any suggestions or advice. I had taken a 15wk Autocad course about 5 years ago and hadn't used it since. So all of that knowledge is gone. I recently picked up TurboCad and am trying to familiarize myself with simply tasks. So, any feedback/help would be greatly appreciated!

Thanks,

Chris Robinson

Chris if their program does save in g-code then just save then run a conversion on the shopbot under g-code David in Wyoming

Chris, ShopBot provides a G-code conversion utility free with every ShopBot. This thread is dedicated to it and this thread also helps. But you will find many more references on this forum if you do a keyword search on "g-code" - (type the quotation marks (quotes) in to the search box as well.

David and Gerald,

eCabs exports it's cnc file as a ".TWD" file. I think they export the data under that extension and then their post processor at their machine uses the data.

So, what I have to work with is a color picture of the nested parts. I'm not sure if I can use this picture of the nested parts and get to a shopbot file that I can use. The picture does have detail, like grooves for back, dadoes, shelf pin holes and cutter path. It would be nice if there were a way to use it without buying the $6k add-on package from Cabnetware or a $70k Thermwood router!

If you guys don't mind, I'll email you a copy of the nested parts. Maybe by looking at it, you can help?

Thanks,

Chris Robinson

Chris, could you mail one of those .twd files as well as the picture?

Hi Chris,

The following is from the e-cabinet web site FAQ...


Q. Can the software be used to create programs for any other CNC?

A. No. The software relies on the "Rolling Nest" to function properly. The "Rolling Nest" programs must run within the CNC control and Thermwood's 91000 SuperControl is currently the only control that can run this software.


That doesn't mean that you can't convert it to be readable by a ShopBot, but since it was developed by Thermwood I'd bet they didn't make it easy to use anything other than their machines!

Bill

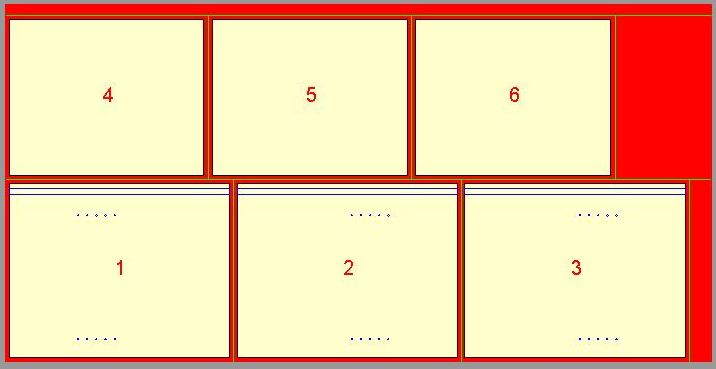

Chris, Bill seems to have predicted it quite correctly. The .jpg resolution is way too low to try and convert and the .twd file has been coded. Here are pieces of the files, in case another SB'er is more optimistic: (the jpg is original resolution)



Attachment 4522


Ç�7ôð2€7Þ¥¦g&Nt ilde;“pW`÷V,˜ms¼yÙ<&#9 1;…s
‹v~Ûèºâ™æ�k�&Aring ;d_$

(ñ´K�‹<ÆfBÃ
ô¸wÃdY‚±¹
PçõÑs0Æ‚…#©} N}#~xº|áOÚ5ã&Oacu te;ÙZ_²�ÿÒ™JKl&&mic ro;;Ÿ
³í·_â‚ù-ê6à�ŽþÈ,G*W`Í ü�¡ˆDÄœ“Ñ+}Çe î0Ð:û‘*­^rn!é[E&Ucirc ;L¤íž4+3Ó:Žþ#Ä eÇïíµ·�‚A&uum l; ’8³½oEšBÇ’U-’íöm—¹s¬&1 6Îð7èRóã"W&u circ;�ƒ ? JìùØ0zën0‰Ûš&Cced il;fwM_à;&¾Rà§,&ig rave;­ŸÑåÔèå6
SZ»©lMÍ�ãax

It would be "one more step" but, the JPG file could be put in RHINO (or any other program that will allow "over tracing") and manipulated.

Pull the individual parts into VECTOR and put on the "Rhino developed" layout.

Hi Chris,

Their FAQ also says that it generates a cutting list and dimensioned drawings...what sort of info is in those?

Before you put a lot of time into trying to get a ShopBot to work with their software, though, you might check out any restrictions you agreed to when installing it. It looks like you have to be connected to the internet to use e-Cabinet...it would be a bummer to put a lot of work into it and find out that you've broken the user agreement and have the software shut down.

Just a thought,
Bill

Chris why don't you use something like AutoCad or even turbocad and then there is no proublem. if youlike the fact that you can do walk thru and such for your customers then get a cheep kitchen design software from Walmart etc. with turbo cad you can do all cab profiles drill points etc. (But e-cabs buying power sounds great) David in Wyoming
