Thread: Dust collection for CNC rotary setup

  1. #1
    Join Date
    Mar 2004
    Location
    Lenox High School, Lenox MA
    Posts
    963

    Default Dust collection for CNC rotary setup

    I'd like to see what people have set up for dust collection for a CNC rotary indexer.

    Thanks, Phil

  2. #2
    Join Date
    Mar 2013
    Location
    Memphis TN
    Posts
    1,011

    Default

    I have a great dust collection system for my indexer. I let it fly and pay my daughter to vacuum it up.

    I tried to figure out a good way to keep the dust under control but virtually everything I tried was less than effective and got in the way of the process. Best to just pay my daughter. Teenagers always need more money.
    ShopBot Details:
    2013 PRS 96x60x12 (Centroid upgrade)
    4hp Spindle
    12" indexer
    Aspire
    Rhino
    Fusion 360
    Ferrari 360
    Prusa MK3S+
    Prusa XL multi-tool

  3. #3
    Join Date
    Oct 2013
    Location
    3rd rock
    Posts
    115

    Default

    Inverted and mounted to the gantry with an adjustable bracket.
    It follows with the gantry and hooked to any dust collector, works great.




    https://www.amazon.com/PSI-Woodworki...7240210&sr=8-9
    Tah-Dah

  4. #4
    Join Date
    Mar 2004
    Location
    Lenox High School, Lenox MA
    Posts
    963

    Default

    8Ball, thanks. Definetly worth consideration.

    Phil

  5. #5
    Join Date
    Mar 2004
    Location
    Lenox High School, Lenox MA
    Posts
    963

    Default

    8Ball, [QUOTE=8Ball;210589]Inverted and mounted to the gantry with an adjustable bracket.
    It follows with the gantry and hooked to any dust collector, works great.

    I'm considering the same device for dust collection. Would you post a picture that shows how it is attached to the gantry?

    Thanks, Phil

  6. #6
    Join Date
    Jun 2001
    Location
    Austin, TX
    Posts
    445

    Default Dust Collection

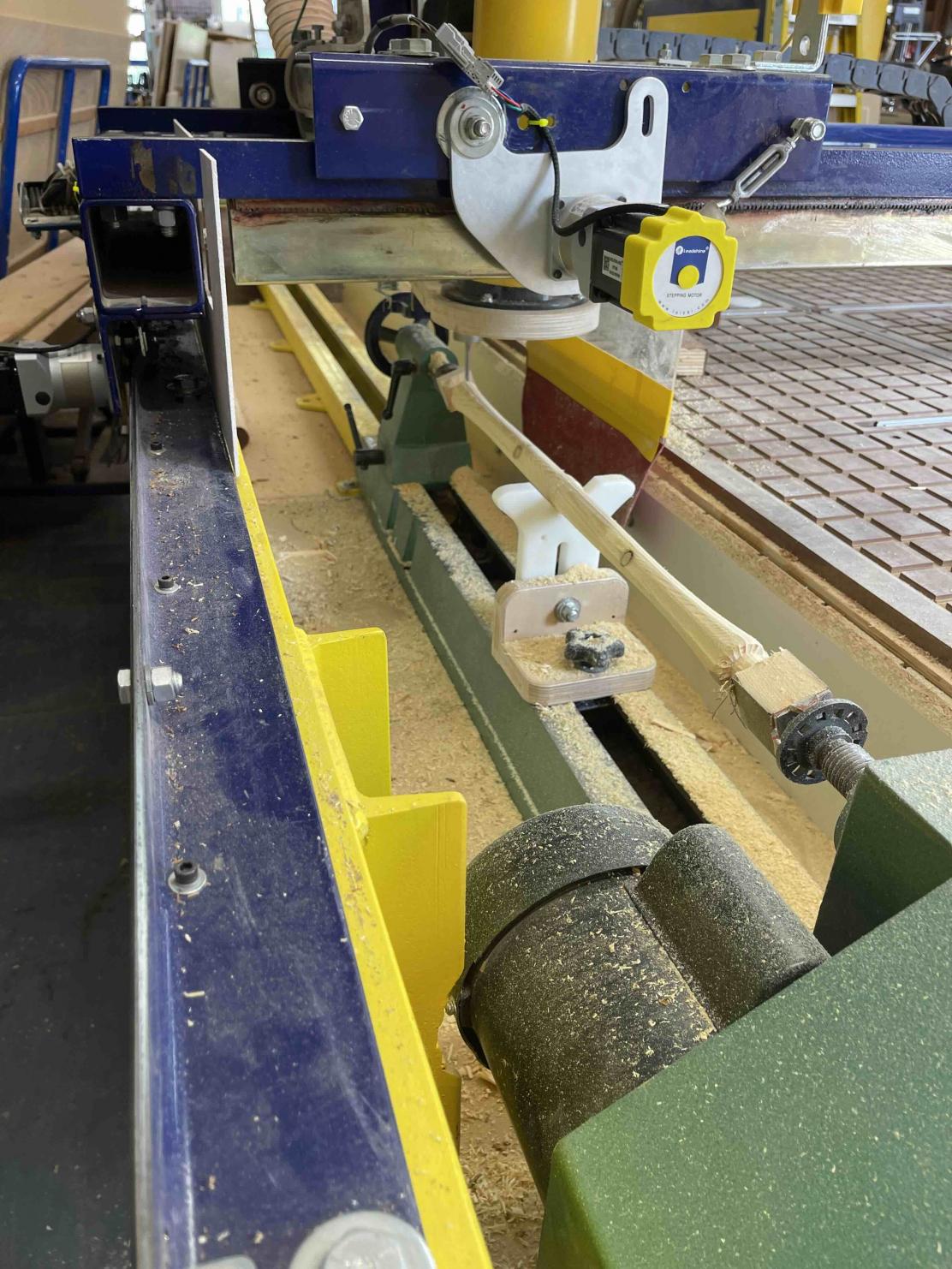

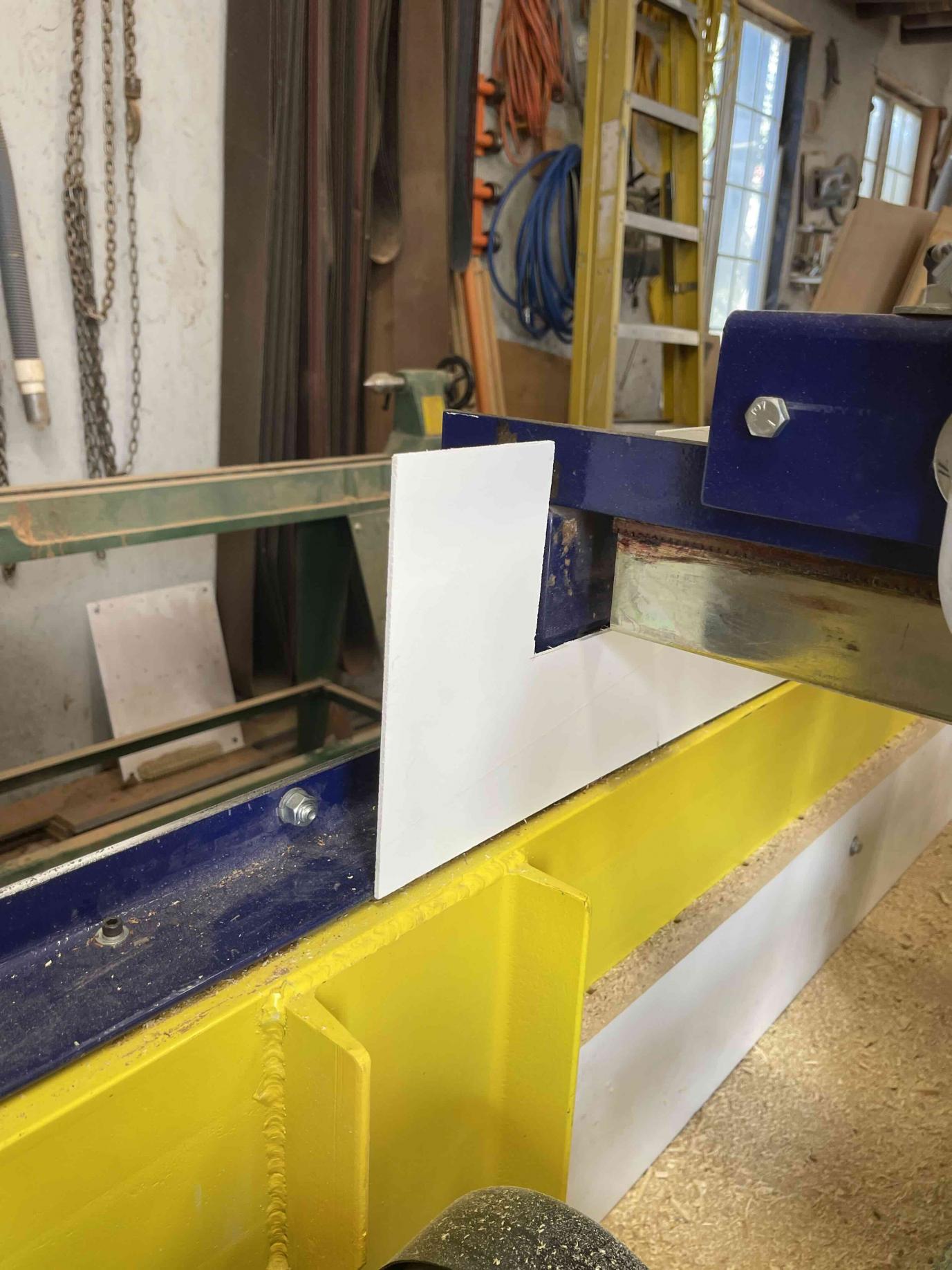

    I gave up on dust collection on my PRT Rotary but I filled the sides and bottom where it is mounted and made a couple of shields mounted with rare earth magnets which move with the gantry. It pretty much keeps the chips confined to the trough where they are fairly easy to pick up and vacuum.
    Attached Images Attached Images
